    3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine

    Ask Lasest Price
    Brand Name : CBFI
    Model Number : TV10-TV300
    Certification : CE, ISO
    Price : USD 9500~10000000
    Payment Terms : T/T, Western Union, MoneyGram, L/C
    Supply Ability : 50 to 60 sets/month
    Delivery Time : 35 days after the deposit
    • Product Details
    • Company Profile

    3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine

    CBFI 3 ton, 5 ton, 10 ton, 20 ton, 30 ton Tube Ice Machine Hollow Crystal Tube Ice​


    1. Edible hollow tube ice

    3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine

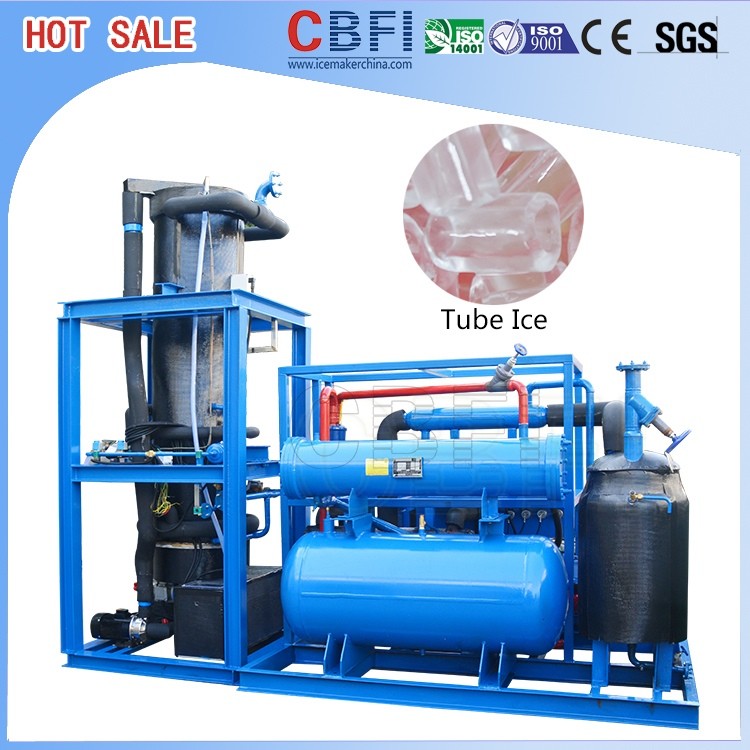

    2. CBFI tube ice machine pictures

    3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine


    5 ton tube ice machine


    3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine


    10 ton tube ice machine


    3. Machine parameter



    Model
    Ice Making
    Capacity
    Rated
    Power

    Circulating Water
    Pump Power
    Cooling Water Pump Capacity
    Cooling Fan Capacity
    Ice Cutter Motor
    Dimension
    Weight of Machine
    No.
    Ton/24h
    kw
    kw
    kw
    kw
    kw
    W*H*L(mm)

    KG
    TV10
    1.0
    4.28
    0.55
    1.1
    0.18
    0.75
    1100*900*1760
    900
    TV20
    2.0
    7.77
    0.55
    1.5
    0.37
    0.75
    1250*1000*1950
    1200
    TV30
    3.0
    12.33
    1.1
    1.5
    0.56
    0.75
    1400*1100*2200
    1500
    TV50
    5.0
    21
    1.5
    2.2
    0.75
    1.5
    1600*1400*2250
    1800

    TV100

    10.0

    29.2
    1.5
    4
    1.5
    1.5
    1200*1200*3100

    2300*1550*1800

    3500
    TV150
    15.0
    49
    2.2

    5.5

    1.5
    1.5

    1500*1200*4500

    2700*1950*2250
    4250
    TV200
    20.0
    58.5
    1.5
    5.5
    2.2
    2.2

    1600*1300*4700

    3100*2200*2250
    6500
    TV300
    30.0
    87.6
    2.2
    15
    2.2
    2.2
    3000*2200*2500

    2200*1900*6200

    7200

    4. Machine feature

    * Ice dropping design: protect ice cutter and make the ice cutter motor

    running well.

    * Unique Design of Middle Partition: no gap between the ice making tube

    and middle partition panel, so the ice dropping smoothly.

    * Ice Tube Evaprator:

    ice making tube: 1.5 mm thickness Stainless Steel 304;

    evaporator floor : 10 mm thickness Stainless Steel;

    middle partition: 35 mm thickness Carbon Steel;

    evaporator wall : 8 mm thickness Carbon Steel.

    * Heat exchanger: improve the refrigerantion efficiency. Energy saving: low

    to 80 kw.h per ton ice.


    3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine


    5. More details

    * Automatic ice out let: no need hand operation, save labor cost.

    * PLC controller: german siemens PLC controller control automatically,

    only need 2 people operate ( one people to pack the ice, one people to

    put the ice into cold storage).

    * Japan 304 SUS seamless steel pipe: make the ice more clean and make

    sure the machine have longer life span.

    * Different ice size for choice : 22mm , 28mm and 35mm .


    3 ton Hollow Crystal Tube Ice Maker / Industrial Ice Making Machine



    6. Ice Tube Machine Main components

    Item No.Name of ComponentsBrand Name
    1CompressorGermany /Bock
    2PLCGermany SIMENS
    3Expansion valveDenmark DANFOSS
    4Solenoid valve of Water supplyDenmark DANFOSS
    5Oil filterAmerica Emerson
    6High and low pressure meterSwitzerland REFCO
    7Electrical componentsSouth Korea LG (LS)
    8Circulating water pumpChina Nan Fang
    9Evaporator MaterialStainless Steel 304 (SUS304)

    7. Customer cases

    CBFI 30 ton tube ice machine in Malaysia


    CBFI 10 ton and 15 ton tube ice machines in Indonesia
