10 Tons Edible Tube Ice Making Equipment Applied For Cold Drink And Cooling Food

Guangzhou Icesource Refrigeration Equipment Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 10 Tons Edible Tube Ice Making Equipment Applied For Cold Drink And Cooling Food from wholesalers

    Buy cheap 10 Tons Edible Tube Ice Making Equipment Applied For Cold Drink And Cooling Food from wholesalers
    • Buy cheap 10 Tons Edible Tube Ice Making Equipment Applied For Cold Drink And Cooling Food from wholesalers
    • Buy cheap 10 Tons Edible Tube Ice Making Equipment Applied For Cold Drink And Cooling Food from wholesalers

    10 Tons Edible Tube Ice Making Equipment Applied For Cold Drink And Cooling Food

    Ask Lasest Price
    Brand Name : CBFI
    Model Number : TV10-TV500
    Certification : ISO, CE, BV, SGS
    Price : USD99 - USD999999
    Payment Terms : Western Union, L/C, T/T, MoneyGram/Cash
    Supply Ability : 60-70 set per month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    10 Tons Edible Tube Ice Making Equipment Applied For Cold Drink And Cooling Food

    10 tons edible tube ice making machine equipment applied for cold drink and cooling food


    Product Description

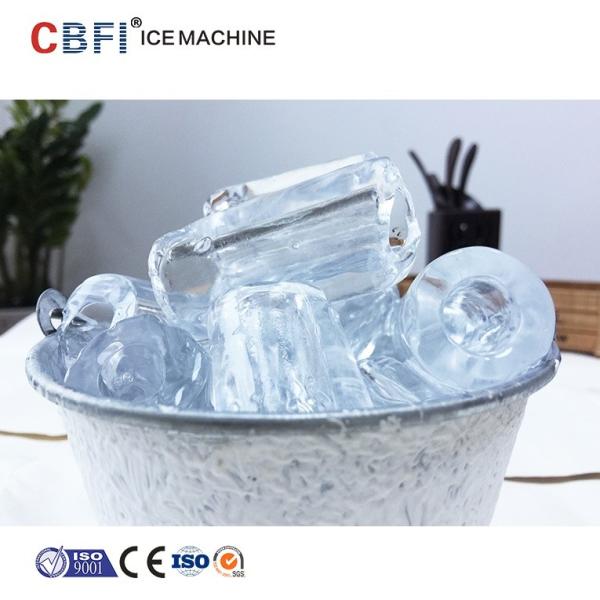

    1.Sanitary edible tube ice: The tube ice is cutting flat and even,and it can be directly edible or used to freeze drinks in cafe,bar,and restaurant.


    2.Tube ice size: The length of tube ice is 25~42mm,three kinds of external diameters for your choice: 22,28,35mm,and the outside diameters is usually about 5mm~10mm.


    3.Perfect design and easy operation: The machine has compact structure,which takes less area,and once connected with water and power supply,it can be put into production.


    4.Full automatically: The whole ice making process is automatically controlled by PLC controller,and the thickness,as well as the length of the ice tube is also controlled automatically.


    Machine Information
    Machine InformationName10Ton/24 h Tube Ice Machine
    ModelTV10
    Daily Capacity10,000 kg
    Machine Dimension

    1900*1600*1850mm(machine unit)

    1200*1200*3390mm(evaporator)

    Machine weight3500 kg


    10 Tons Edible Tube Ice Making Equipment Applied For Cold Drink And Cooling Food


    Ice Output Information


    Ice InformationIce shapeTube Ice

    Ice diameter

    (mm)

    Freezing time

    (min)

    Ice output shift per day

    Weight of per hour

    (kg)

    22/28/3516 ~ 1872417
    Ice Length30~45 mm
    Ice Density500~550kg/m3
    Tube Mould Material

    Seamless Stainless Steel 304 Tube

    (Made In Japan)


    Tube ice machine advantages


    • CBFI tube ice machine adopts oil balance equipment and oil reservoir. It is to keep enough oil to come back to compressor and lubricate it .Maybe it is small things, it is very important for compressor to run for long time.
    • CBFI Evaporator adopts PU insulation that is formed with stainless steel cover together. It can improve refrigeration capacity and save power, and also the material can keep ice clean.
    • Our machines’ cutting knifes are absolutly vertical and keep rotating at constant speech to make water frozen evenly.
    • Our machines have the heat exchanger, which can lower the temperature of refrigerant going to the expansion valve and improve the gasification effect of refrigerant going back to the compressor, and thus it can improve the efficiency and ice production.

    10 Tons Edible Tube Ice Making Equipment Applied For Cold Drink And Cooling Food


    Main Components Information


    CompressorBrand Name(Germany)
    TypeSemi-Hermetic Piston type
    Product Model6GE-34Y*2
    Power49 kw
    Refrigerating Capacity139 kw
    Cooling TowerBrand NameCBFI
    ModelLCT-60
    Power of Cooling Water Pump4 kw
    Power of Cooling Fan1.5 kw
    Heat transfer capacity271 kw

    Ice making water Circulating pumpBrand NameNanfang
    Power1.5 kw

    Ice Outlet MotorBrand NameNord
    Power1.5 kw
    Our Services

    1. We have a large after-sale service team. All the technicians are very experienced, they always go to different countries to serve customers like you.
    2. The warranty of the whole machine is 12 months.

    3. We can offer you design drawing to you and give you some professional ideas.

    Packaging & Shipping

    1. Standard wooden case.
    2. Complete set of ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
    3. Customer only need prepare power and water for the machine.
    4. All required components for install the machine will be provided.

    Payment

    1. The payment can be T/T,L/C,Western Union, Money Gram or in Cash.
    2. The deposit is 30%, after we receive your deposit, we will start to produce the machine for you. The balance 70% should be paid before shipping.


    Company Profile
    10 Tons Edible Tube Ice Making Equipment Applied For Cold Drink And Cooling Food

    As the largest supplier of large edible ice machines, large industrial ice machines, cold rooms, etc. in the world, Guangzhou Icesouce Co., Ltd.(CBFI) is a high-tech company setting R&D, production, sales and service in one. Our products are sold to European Union, North America, Africa, South America, South-east Asia and so on, more than 100 countries or areas. We have professional technical personnel and R&D staff to ensure high-quality machines. What’s more, we have achieved many certificates, like CE and patents.
