    Transparent Ice Ball Maker Machine For Wine High Profit Food Grade

    Low Cost High Profit Food Grade Transparent Ball Ice Machine For Wine


    1. Ball ice production process suggestion


    1) RO water filter to clean water firstly

    2) Pure ice maker machine make pure ice block

    3) Ice block surface carving machine make the pure ice surface very smooth and flat

    4) Ball ice cutting machine for cut the pure ice into pieces of ball.

    5) Store the ball ice in cold room.



    A whole set of ball ice making equipment


    • Pure ice block machine
    • Pure ice surface cutting machine
    • Ball ice cutting machie


    Pure ice block machine Pure ice surface cutting machine


    Ball ice cutting machie


    Basic Information

    • Pure Ice block machine
    Model No.Ice Block SizeUnit Price
    FOB (USD)
    PowerVoltageFreezing EfficiencyMachine SizeDescription
    PIM-60
    (same machine)
    480* 270* 60mmUS$7,600.002.1kw220V 50Hz
    1 phase
    4 ice blocks/ 7 hrs1920mm*960mm*1750mm

    1. Ice block is in crystal pure performance completely.

    2. Thanks to high technology, the freezing time is short, only 7 hours. No need to add 2nd time water.

    3. Indirect freezing method, make the ice pure completely without bubble and hole.

    4. Ice block is finished with individual transparent plastic bag, keep it sanity without polution.

    480*270*90mm4 ice blocks/ 11 hrs

    • Pure ice block surface carving machine
    Model No.Finished SizePowerVoltageCutting Surface SizeMachine SizeDescription
    LIM-250
    (same machine)
    480* 270* 55mm2.1kw220V 50Hz
    1 phase
    5mm960mmx1500mmx600mmAfter the pure ice block finish, there one side surface a little unsmooth, pure ice cutting machine is to make it smooth surface, also make the ball ice finished perfectly.
    480* 270* 80mm10mm

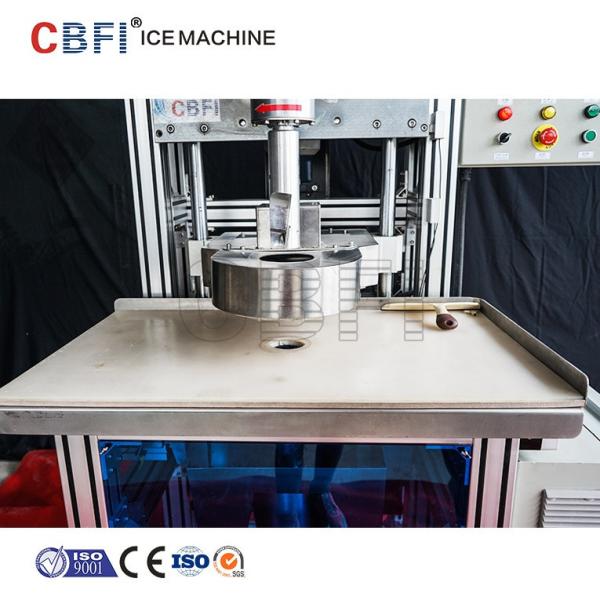

    • Ball Ice cutting machine
    Model No.Ice ball sizePowerVoltageEfficiencyMachine DimensionDescription
    CBM-55Aφ 55mm4 KW220V 50Hz2880 units/ day1280mm*1020mm*2050mm1. 100% round shape with smooth appearance.
    2. Crystal and transparent
    3. One hour could finish 150 units ice ball.
    4. Ice cutting knife is used with food grade material.
    CBM-80Aφ 80mm

    Q&A


    • What is the ice ball size?

    Now we have two available size, φ55mm φ65 φ80mm
    It is used by the same machine, only change the blade you could do different size ice sphere. Our standard is with φ55mm
    blade, if you also need to do φ80mm ice ball, you could buy a φ80mm blade to change.
    So when you have further request for different size ice ball, just let me know, we could send you the ice blade by air.

    • How many years warranty for the machine? How to install this machine?

    One year, this machine is installed well integrated structure and after strict test before shipment, so when you receive this
    machine, you could just connect 1 ph power, then it could work.

    • How many years for the machine working life?

    If operate the machine according to user manual without man-made destroyed, more than 10 years working life is no
    problem. Our company has established over 16 years, and our old machines still working very well when they were sold 10
    years ago.

    • Do you have EU certificate?

    Our machine already got CE certificate approved. And this machine were already sold to USA.also.

    If you are interested in our ball ice machine, please feel free to contact us.
