Economical Automatic Ice Machine Business , Making Ice Blocks Easy Operation​​

1. Features

1) Coil pipe evaporator: No need to worry that the salinity become low and evaporator will be broken down due to No adding salt in time.

2) Agitator instead of water pump: High quantity of brine flow and better heat exchange effect.

3) Energy-saving: Ice-making power consumption had declined from 110kw.h to 74kw.h/ton block ice.

2. Brine refrigeration ice block maker machine MB Series

1) Block ice maker machine completely structure: mainframe, water tank and cooling tower. We will prepare the three parts; you just need to connect the power and water pipes for three parts. It is very easy to do by any electrical technician or refrigeration technician.

2) Block ice maker machine daily capacity: from 1 ton to 20 ton per day. If you want a machine can produce more than 20 tons per day, we need do water tank in your place, because the water is too long so that have no way to ship it.

3) Ice weight: 2.5 kg, 5 kg, 10kg… also can design as your requirement.

4) Power supply: standard 380v-50hz-3p. We also can do special power, 220v-50Hz/60hz-3p, 230v-50Hz/60hz-3p, and so on.

5) Standard working condition: environment temperature 30°C, water supply temeprautre,23°C, evaporate temperature,-15°C.

6) Applicable working condition: environment temperature 5°C ~45°C, supply water 0°C~28°C. It is common that real production of machine will have a little change according to change of water temperature and ambient temperature.

7) Application: block ice can lower temperature, keep fresh for food, chilling drinks and water or some other things. Specially, Africa country the power supply is not steady, so that need big ice.

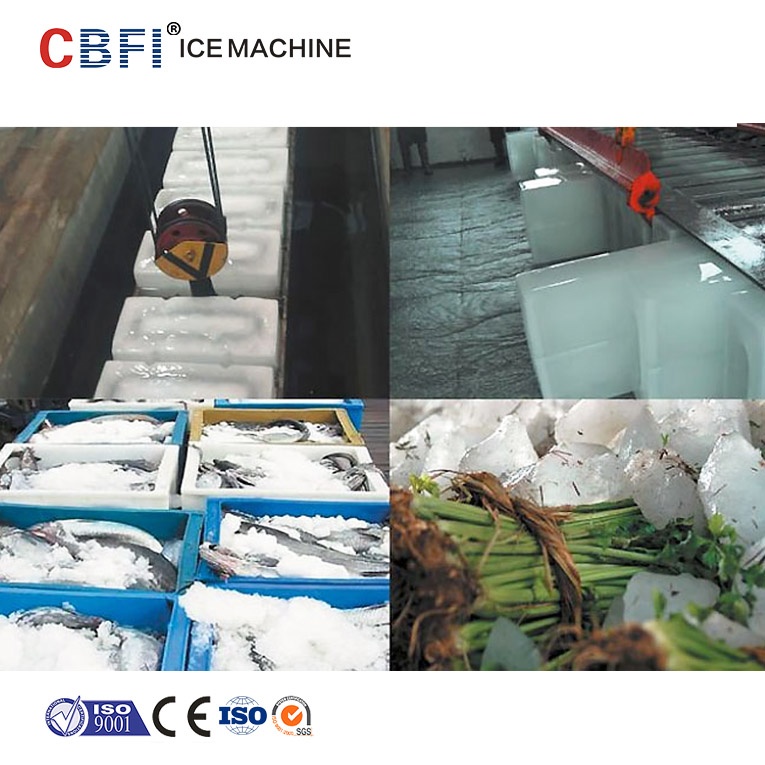

3. Block ice application

Vegetable and fruit cooling, Seafood fresh keeping, Fresh keeping on Fish boat, Workshop cooling,Ice sculpture, Party ice

4. Ice Plant Supporting equipment

1) Cold room: store ice and keep ice for long time.

2) Crane system:include support steel , guider, Electric hoist,hook,controller. The crane system will help customer to take out the block ice from brine tank easily and quickly, Save labor cost and time.

3) Ice crushed machine and ice cutter. Make the block ice into powder or small block ice

4) Ice clip: delivery the ice.

5. Ice Machine Component

Guangzhou Icesource Co., Ltd. (trademark CBFI), a pioneer in the large-scale freon refrigeration and ice making equipment industry, a large ice plant and cold storage engineering solution service provider, is an innovative and entrepreneurial high-tech enterprise that integrates research, design, manufacture, sales, and after-sales service of a large-scale edible ice making equipment, large-scale industrial ice making equipment, high-end commercial ice maker, complete ice making system and small and large cold storage project. The main products are various kinds of ice making machine(direct-cooling block ice machine, block ice machine, tube ice machine, cube ice machine, flake ice machine, plate ice machine, pure ice machine and fully automated ice plant). Products are widely used in food, fishery, retail, fruits and vegetables, aquatic products, chemicals, medical, construction, minerals and other fields for cooling, storage and preservation.

Introduction to CBFI Company

Certifications

Enteprise Honor

Our partners

Packing process

Our Factory

CBFI Quality Management Department

CBFI Quality Management Department is an important control method for processing quality. It equipped with the most advanced inspection equipments The professional control devices,it can provide accurate reference data to choose the most suitable material and accessories, which also effectively control parts quality. Besides, it also provides digital information for engineers and quality controller to determine feasibility for spare parts after processing.

This is the working processing of quality control.

Chooing steady quality supplier. After purchasing raw material, duing testing if it is proved well, then we will arrange these eligible matrial that come into warehouse.

When the machine finish fixing and come into testing working conditon. Every worker will be responsible for their equipment. They will give out fact testing date and results.After proving testing date is accord with delivery standard. Then CBFI Quality Management Department will allow these equipment that go to packing department and waiting for cleaning and packing.

Before delivery, CBFI Quality Management Department should check all mark and packing conditon. If it is prove it is accord with exporting standard and customer's requirement. Then they will allow these equipment come into fininshed product area.

Of course CBFI Quality Management Department have the right to make sample testing for every production step to make sure product quality.

CBFI means Customer Benefits From Icesource. We will take care of product quality.
