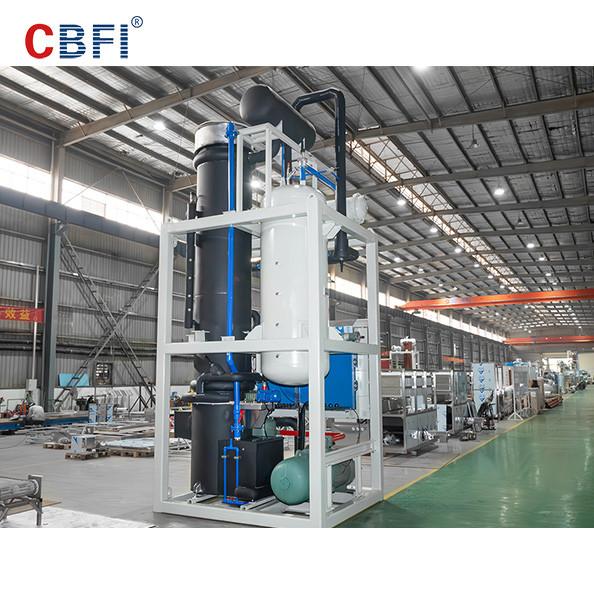

    Freon R507 / R404a Electrical Heavy Duty Ice Tube Machine 10 Ton / Day

    Ask Lasest Price
    Brand Name : CBFI
    Model Number : TV10-TV300
    Certification : ISO, CE, BV, SGS
    Price : USD1 - USD999999
    Payment Terms : Western Union, L/C, T/T, MoneyGram
    Supply Ability : 60 set per month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

    Freon R507 / R404a Electrical Heavy Duty Ice Tube Machine 10 Ton / Day

    20 Tons / Day Ice Tube Machine Large Production Ice Making Machines


    Product Description

    1. Ice tube machine for produce food grade ice too, tube ice is edible ice.
    2. Diameter of tube ice we usually design it as 22mm, 28mm, or 35mm,
    Length of ice is about 30 mm to 50 mm.

    3. Daily capacity of ice tube machine can be from 1 ton to 40 tons.
    4. Tube ice macine was designed save space, high efficiency heat exchange, and energy saving, so it is widely favored by market.


    1 ton to 30 tons parameter
    ItemCompressorWater circulating pumpIce cutterCooling towerWater pump
    Cooling capacityPowerPowerPowerFan Motor PowerPower
    1 ton17.8 KW7.2 KW0.37 KW0.75 KW0.18 KW1.1 KW
    2 tons22.3 KW7.9 KW0.55 KW0.75 KW0.37 KW1.5 KW
    3 tons30.1kw10.6 kw1.1 KW0.75 kw0.56 KW1.5 KW
    5 tons60.2 kw21 kW1.5 KW1.5 KW0.75 kw2.2 KW
    10 tons83.3 kW29.2 kW1.5 KW1.5 KW1.5 KW4 kw
    15 tons139 kw49 kW2.2 KW1.5 kw1.5 kw5.5 kw
    20 tons166.6 kw58.5 kw2.2 kw2.2 kw2.2 kw5.5 kw
    30 tons249.9 kw87.6 kw2.2 kw2.2 kw2.2 kw7.5 kw


    Application:
    1. It can be directly eaten
    2. It can be used to freeze drinks
    3. Mix wines
    4. Cool food stuffs
    5. Make ice pastries and keep fresh
    Features:
    1. Perfect design: adopt 3D simulation assembly, compact structure,easy operate and maintain
    2. health: all the metal of the ice-making machine that will touch with water are SUS304,impurities and metal ions that effect transparent function was discharged from circulating bin during the end of each cycle of ice making.
    3. Efficient performance: ice maker adopt special alloy material and with special heat treatment, make the ice maker with best thermal performance.
    4. Full automatically: PLC system controls the whole ice making process.
    Tube ice maker machien technical parameters:


    structure of tube ice


    Freon R507 / R404a Electrical Heavy Duty Ice Tube Machine 10 Ton / Day


    Other :


    1. The payment can be T/T,L/C,Western Union, Money Gram and in Cash.
    2. The deposit is 30%, after we receive your deposit, we will start to produce the machine for you. The balance 70% should be paid before shipping.
    3. The delivery time normally is 30 days after receive the deposit.
    4. If necessary, we will arrange the shipping for you.




    Note:
    The above information is according to adopt water cooled condenser.
    Size of machine is before installation. Size of machine is the same with the size before
    installation.
    It didn’t mention size of cooling tower, cooling tower usually install in the outside.

    Machine running condition:
    1. water temperature: 28Centi degree,
    2. evaporate temperature: -12Centi degree,
    3. condensing temperature: 40Centi degree,
    4. reference valve under 50Hz power supply.
    Real production of machine will have a little change according to change of water
    temperature and ambient temperature.
