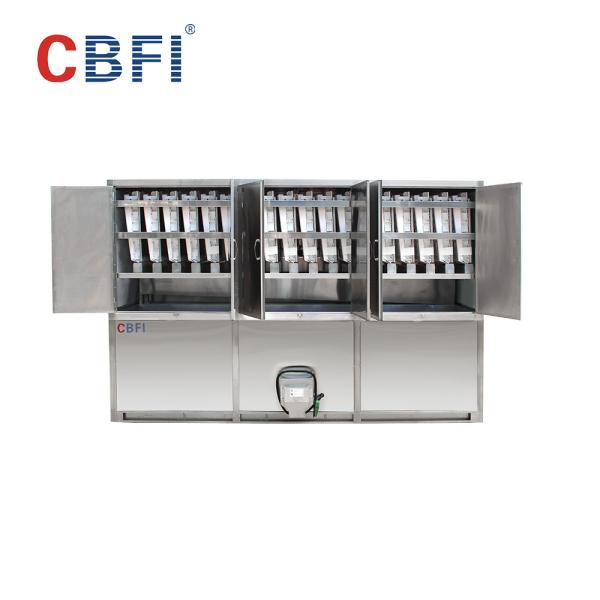

    Edible food grade Ice Cube Maker Machine clean ice and more easy operate

    Ask Lasest Price
    Brand Name : CBFI
    Model Number : CV5000
    Certification : CE, ISO, SGS, SONCAP, BV
    Price : USD 1 - 100000 per set
    Payment Terms : T/T, Western Union, In Cash
    Supply Ability : 50 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Edible food grade Ice Cube Maker Machine clean ice and more easy operate

    CBFI Cube Ice Maker China


    CVSeries Icesource ice cube machine capacity per day

    Ice source ice cube machine capacity have

    1ton(1000kg) to 20tons(20000kg) ,

    optional ice capacity:1ton,2ton,3ton,5ton,8ton,10ton,15ton,20ton

    We provide two different kinds of ice moulds,optional ice size:

    22mm*22mm*22mm

    29mm*29mm*22mm


    cube ice function"


    Icesource cube ice machines are widely used in hotels,restaurants,bars,fast-food shops,supermarkets and cold drink shops, etc.

    Icecource ice machine are highly efficient,energy saving,safe and environmentally friendly andd quickly becoming the most popular choice for clients around the world.


    CV Series Large Ice Cube Maker Machine models for your reference


    Item No.Production

    Compressor

    Rated Power

    Circulating Water Pump PowerCooling Water Pump PowerCooling Fan Power

    Machine

    Dimension

    Weight of Machine
    Ton/24HKWKWKWKWL*W*HKG
    CV10001.03.690.371.50.371200*1000*1600800
    CV20002.07.110.371.50.551630*1600*16861000
    CV30003.09.680.372.20.751980*1630*18401200
    CV50005.017.470.552.21.52890*1780*18401600
    CV80008.028.521.141.54820*1780*20002500
    CV1000010.037.681.141.55730*1780*20003000
    CV1500015.052.411.655.52.28620*1780*20004500
    CV2000020.075.362.28311460*1780*2100

    6000

    Note:

    1.The above information is according to adopt water cooled condenser.

    2.Size of machine is before installation.

    3.It didn’t mention size of cooling tower, cooling tower usually install in the outside.

    4.The full ice cube machine include ice machine,water pump and cooling tower.


    CV Series Ice source ice cube machine working condition

    Water temperature 23°C,

    evaporate temperature -12°C,

    condensing temperature 40°C,

    reference valve under 50Hz/60Hz power condition.

    Real production of machine will have a little change according to change of water temperature and ambient temperature.


    CV Series Large Ice Cube Machine Features

    • High Technology:Our cube ice maker machine has been adopted four leading technologies: automatically adjust ice thickness, automatically match the change of ambient temperature, automatically supply ice making water and facilitate condensing pressure steady. With the full automatic production process, our cube ice maker machine can produce ice cube with nice appearance and adjustable thickness.Our cube ice maker machine has been reasonably adopted our two patent technologies: flat plate exchange heat technology and circulating heat dropping ice technology, which are the breakthrough technologies to solve the problems of low production,save power consumption and dropping ice instability.
    • High Production Capability:The design is according to the harsh outdoor enviroment to ensure the production rate, the production can reach 90% to 95% in summer. When the environment temperature is below 23°C, the production of our cube ice maker machine can reach 100% to 130%.
    • Low Power Consumption: We adopt first-class compressor and refrigeration originals and adopt sophisticated detailed design to ensure the products reach first-class energy saving and environment protective standard. In summer,The power consumption of our cube ice maker machine only reaches about 85KW.H for producing 1 ton ice cube. When the environment temperature is below 23°C, the power consumption of our cube ice maker machine is from 70KW.H to 80KW.H when producing 1ton ice.
    • Easy Operation: We adopted the PLC program centralized control, one-key operation to star or stop the machine, self-adjustment for ice thickness, self-adaptation for ambient temperature and balance between automatic ice forming and water supply. Manual operation is not required. Our cube ice maker machine is easy to operate.
    • Optional Equipment:Our cube ice maker machine can be equipped with automatic ice spreading system and special ice packing system. The cube ice maker machine not only can reduce manpower, but also can ensure the food security, meet the food standard and improve the production capability.
    • Compact Structure:The integrated design is adopted in our cube ice maker machine with the outstanding feature of saving space.
    • Convenient to install:For water cooled system: just need assemble the cooling tower,connect the water pipes between the ice cube machine and cooling tower and supply the power and water to the machine as our installation manual required.

      For air cooled system: the air cooled condenser is with the machine in one whole unit, we already did the connection in our factory, so customer just need supply the power and water to the machine as the installation manual required.
