    Industrial Tube Ice Maker Machine With Semi Automatic Packing

    Ask Lasest Price
    Brand Name : CBFI
    Model Number : TV10-TV300
    Certification : ISO, CE, BV, SGS
    Price : USD1 - USD999999
    Payment Terms : Western Union, L/C, T/T, MoneyGram
    Supply Ability : 60 set per month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

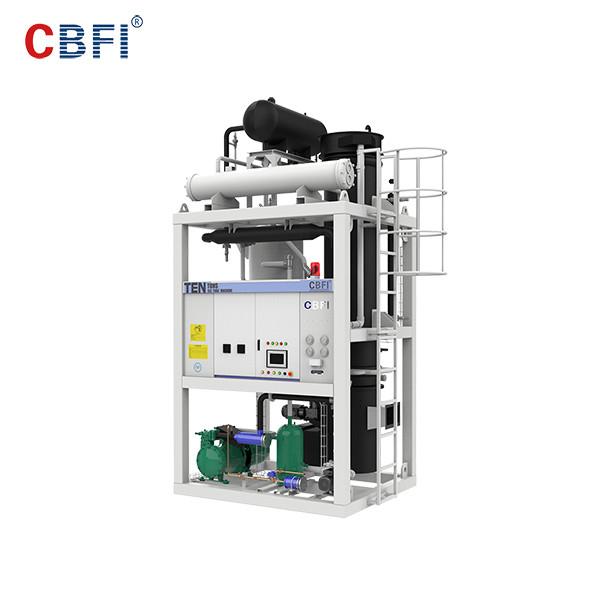

    Industrial Tube Ice Maker Machine With Semi Automatic Packing

    CBFI Industrial Tube Ice Maker Machine With Semi-automatic Packing


    CBFI® Tube Ice Machine R&D History and Certificates
    1. Started tube ice machine production in 2011.
    2. In 2015, 20 tons Freon tube ice machine was successfully developed
    3. In 2019, Large Ammonia Tube Ice Machine
    CBFI has CE certificate for tube ice machine, and three inventional patents including tube ice making machine itself, a tube ice cutter, and a new kind of tube ice cutter.


    Tube Ice Machine Features

    1. Freon System and Ammonia System
    2. Daily Capacity : 350kg-80Tons
    3. Tube Ice: Hollow or Solid. Ice tube is thick and crystal clear, and it takes a long time to melt or store.
    4. The outer diameter of the ice tube is φ22mm, φ28mm, φ35mm, etc. and the length is between 25~45mm, and the inner diameter can be adjusted during the ice forming process usually between φ5~10mm


    Our Advantages

    Why Choose Us?
    Superior R&D team
    1. latest technology on the refrigeration system which reduce the electricity consumption
    2. special design on the ice defrosting
    3. CBFI's unique tube ice machine evaporator process
    4. special design for the ice cutter.

    Mature pre-sales and after-sales service

    1. It can make different size tube ice.
    2.
    Localized after-sales service in some countries.
    3. Provide Installation or After-sales Service Global Wide.

    Easy Operation
    Fully automatic, easy installation, easy operation, easy maintenance

    Product Parameters
    Tube Ice Machine Parameters
    ModelDaily output
    (T/24h)
    Compressor
    Power
    Fan Power for Cooling TowerCooling Pump
    Power
    Unit size (L*W*H mm)
    (Intergrated Type)
    Unit N.W.
    (kg)
    TV1014.1kw0.25kw1.1kw1100*900*1780900
    TV2027.44kw0.25kw1.5kw1250*1000*19501200
    TV30310kw0.55kw1.5kw1300*1100*22001500
    TV50519.9kw0.55kw2.2kw1600*1400*22501800
    ModelDaily output (T/24h)Compressor
    Power
    Fan Power for Cooling TowerCooling Pump
    Power
    Unit size (L*W*Hmm)(Split Type)Unit N.W.
    (kg)
    Main HostBrine Tank
    TV1001027.9kw1.5kw4kw1900*1600*18501200*1200*33903500
    TV100+1039.8kw1.5kw4kw2400*1700*20001200*1200*33903700
    TV1501546.4kw1.5kw5kw2700*2000*22001500*1200*42504250
    TV2002055.7kw2.2kw7.5kw2800*2200*22001500*1200*47006500
    TV3003083.6kw2.2kw7.5kw3100*2200*25001800*1500*57007200
    TV40040111.4kw2.2kw11kw3900*2250*25002000*1500*68008300
    TV50050139.3kw3.75kw15kw4500*2250*25002200*1800*72009500
    ?Compressor Brand: / Frascold; Refrigerant: R507/R404A; Cooling Method: Water Cooling / Air Cooling;
    ? Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately).
    ? Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 40 ° C,T(evaporating):-12ºC.
    ? (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
    ? (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.)
    Quality Control

    Tube Ice Machine Application

    It has a hollow or solid cylinder that is widely used for Cold drinkings, Restaurants, bars, café, Supermarkets and Convenience Store Food processings etc.
