    Industrial 10 Ton Ice Tube Machine R717 Bacteria Free

    Ask Lasest Price
    Brand Name : CBFI
    Model Number : TV100
    Certification : CE
    Price : USD48000 - USD67000
    Payment Terms : Western Union, L/C, T/T, MoneyGram
    Supply Ability : 60 set per month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

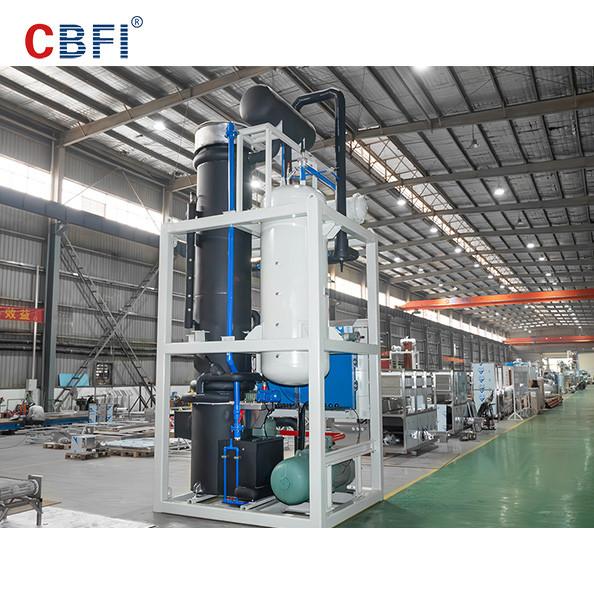

    Industrial 10 Ton Ice Tube Machine R717 Bacteria Free

    Ice Tube Machine Industrial Large Production 10ton Tube Ice Machine


    10 ton tube ice machine is a split type ice machine. The ice making part is set apart from the main body, so that you can design the ice plant in a better way to use all the space. It is recommended to equip a screw type ice storage with cold source. Then the tube ice could last over night before packing.


    Technical Specifications

    TV100 10 ton Tube Ice Machine Parameters
    NameUnitParameter
    Tube DiametermmΦ22Φ28Φ35

    Compressor Parameter

    Model6FE-50
    Cooling Capacity(kW)79
    Power(kW)27.9

    Condenser

    ModelWN-55
    Heat Exchange(kW)164.5
    Condensing TemperatureDegree Celsius(℃)40
    Evaporating TemperatureDegree Celsius(℃)-12
    Ambient TemperatureDegree Celsius(℃)32
    Water TemperatureDegree Celsius(℃)20
    RefrigerantAmmonia R717
    VoltageV/P/HZ380/3/50

    Motor Power

    Ice Cutting Motor(kW)1.5
    Recircling Pump(kW)1.5

    Cooling Tower

    ModelLX-60
    Power(kW)1.5

    Cooling Pump

    ModelGD80-21
    Power4
    Cooling Fan PowerPower(kW)1.5
    Water Cooling Machine DimensionL*W*H(mm)1900*1600*1850
    Refrigerant Quantitykg25027530
    Machine Weightkg3500

    Industrial 10 Ton Ice Tube Machine R717 Bacteria Free

    Working Conditions


    Industrial 10 Ton Ice Tube Machine R717 Bacteria Free


    Product Characteristics


    1. Use hot Freon gas to make ice fall off fast with the whole process takes only 150~180 seconds.
    2. After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice.
    3. With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.

    4. Making every ton of ice just need 80kw.h, saving electricity power

    5. Use of stainless steel SUS304, make sure the ice is purified and safe.

    6. Adopt PLC control system, make ice, deice, clean machine and check problems automatically.

    7. Tube ice is 100% transparent, purified, bacteria-free, reaching food grade


    Industrial 10 Ton Ice Tube Machine R717 Bacteria Free


    Application


    Industrial 10 Ton Ice Tube Machine R717 Bacteria Free


    A Whole Set of Tube Ice Maker Machine Equipment


    • 10 tons tube ice maker machine: make tube ice

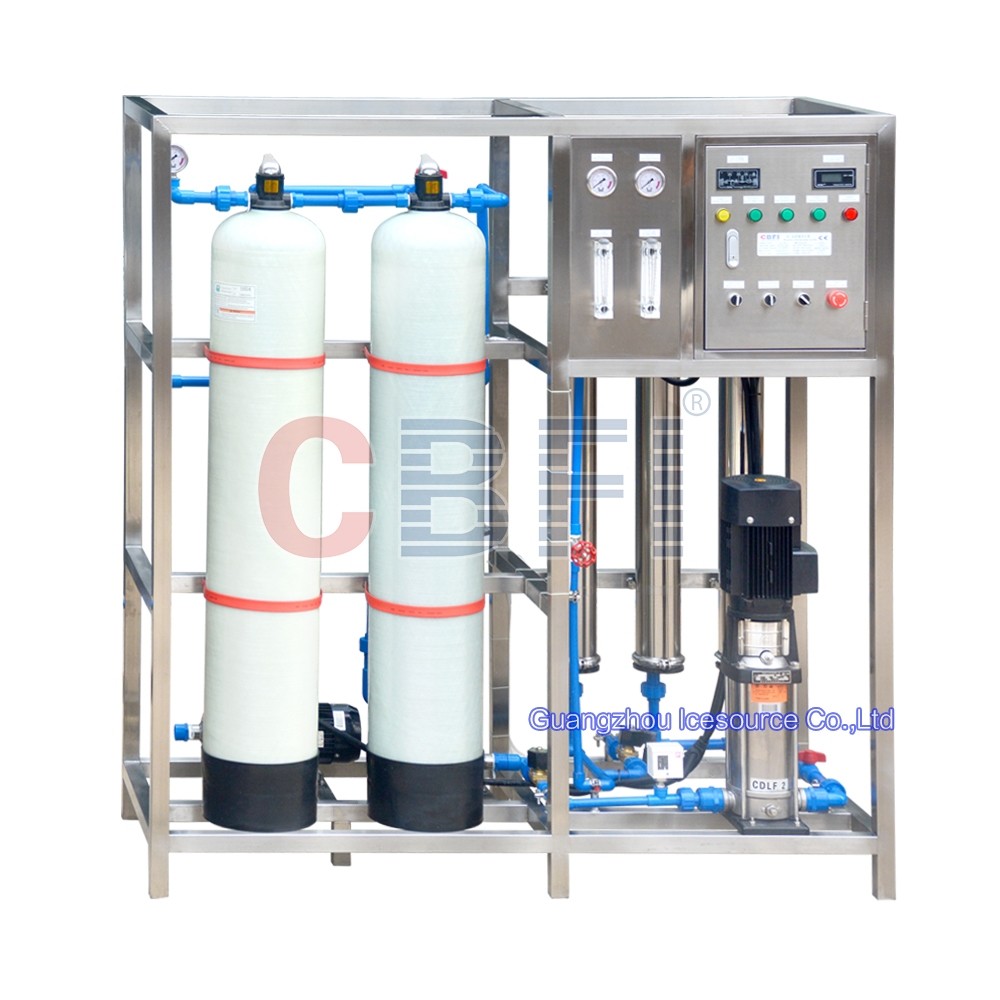

    • 500L RO water filter: purify water to make ice reach food standard
    • 500L Water Tank: store purified water
    • Water Chiller: precool ice making water to improve refrigeration efficiency
    • Ice packing equipment: pack ice into bags
    • 50m³ ice storage cold room: store tube ice in low temperature

    Industrial 10 Ton Ice Tube Machine R717 Bacteria FreeIndustrial 10 Ton Ice Tube Machine R717 Bacteria Free


    Company Profile


    • CBFI is based in beautiful city, Guangzhou, China. Company area covers about 14000㎡.
    • Our company has got ISO9001 certifcate,ISO14001 certificate,ISO18001, and our products all have CE certificates. Our machines can work efficiently, safely and stably.
    • Our machine production reachs high degree of automation, having high production capacity.
    • We have high-efficient and expertise R&D team and professional technicians, which are the powerful support for high quality.
    • CBFI has 1 invention patent and 12 practical patents,rated as Guangdong High-tech Enterprise and Guangdong Top500 Innovation Enterprise.
    • Dating back to 2001, CBFI has more than 15-year experience in producing ice maker machines and cold rooms. Our machines hve been sold to about 130 countries around the world.

    Industrial 10 Ton Ice Tube Machine R717 Bacteria Free


    CBFI Welome all of you to Visit our factory


    Industrial 10 Ton Ice Tube Machine R717 Bacteria Free
