CBFI BF5000 5 Tons Per Day Containerized Ice Flake Making Machine

5 tons 24 hrs flake ice machine BF5000 is a middle capacity ice machine. To fully use the machine production, we provide cold storage with cold source for ice storage overnight. The auto control system of the machine ensure the operating at night, and it will stop when the ice storage is full of ice. This capacity is widely used on the islands, it is still able to be powered by diesel generator.

Main Features

● Daily Capacity: 5 ton 24 hrs

● Machine power supply: 3 phase industrial power supply

● PLC intelligent control system, fully automated production, no manual operation required

● Adopt environmentally friendly refrigerant, environmental protection, high efficiency and energy saving

● The overall modular equipment is very easy to transport, move and install on site

● Direct low temperature continuous ice formation, ice temperature below -8 °C, high efficiency

● The whole machine has passed CE certification and has high security

● The ice maker designed and manufactured according to the pressure vessel standard is sturdy, safe and reliable

● Flake Ice shape with excellent cooling performance

● No sharp edges, so it no hurt the cooling products

● 1~2 mm thickness, no need to crush and can use at any time

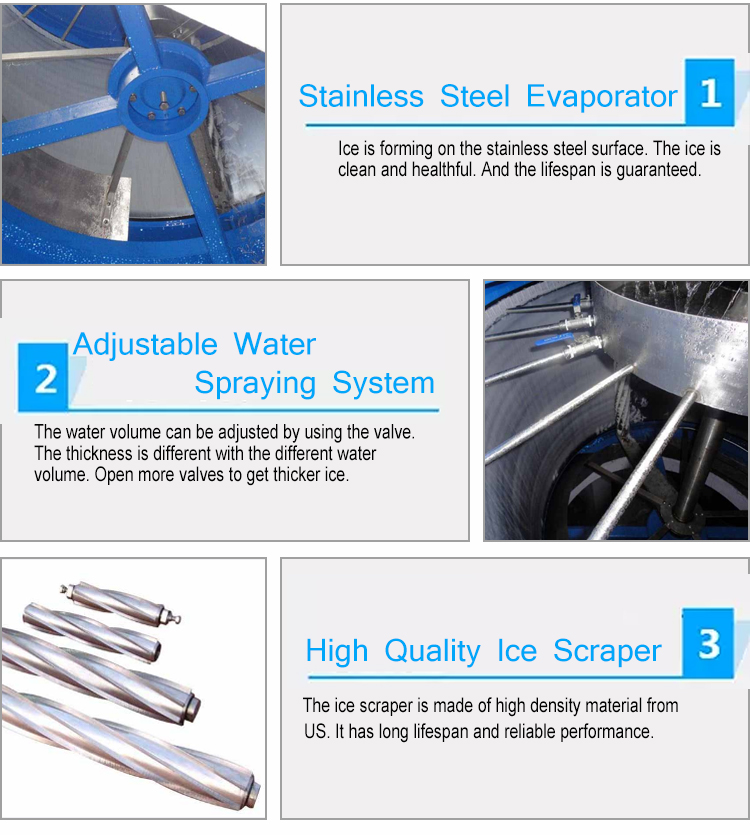

Detailed Images

Product Configurations

Adapted integrated design to make the transportation easier and occupies less area to save your space.

Integrated control

We use Korean LG / LS to make the controlling integrated and more intelligent, you nee no long lecture use the machine.

High quality geared motor

The use of international famous brand geared motors, stable operation and good quality. It can effectively extend the life of the evaporator.

Product Parameters

Model	Ice Making Capacity	Capacity of Refrigeration	Machine Dimension	Weight of Machine
No.	Ton / 24 h	kw	L*W*H(mm)	KG
BF 1000	1	8.85	1300*960*1200	210
BF 2000	2	17.84	1500*1200*1350	360
BF 3000	3	24.15	1800*1250*1400	1000
BF 5000	5	35.1	2100*1250*1500	1100
BF 6000	6	45.85	2500*2040*2200	1100
BF 8000	8	52.7	2100*1250*1500	1300
BF 10000	10	76.1	2300*1750*1740	1500
BF 15000	15	110.9	3200*2100*2000	3200
BF 20000	20	151	3400*2200*2560	4200
BF 30000	30	180	3800*2300*2560	5000
BF 35000	35	214.2	4500*2300*2800	6000
BF 40000	40	226.1	7800*2100*3000	7500
BF 50000	50	268.1	5000*2300*3000	10000
BF 60000	60	278.4	5500*2300*3200	12000
Specifications For Flake Ice Machine
Working Conditions		Power Supply	380 V/ 50 Hz /3P, 220V/ 60Hz/3P , 460V/60Hz/3P
		Refrigerant	R507/R404A
		Cooling Way	Water Cooling/Air cooling / Evaporative Cooling
		Max. Ambient Temp.	+45℃
		Supply Water Temp.	+23℃ to 18℃
		Condenser Temp.	+40℃
		Noise	55 DB

The main reason for the good quality of the ice machine produced by our company is that the compressor, condenser, expansion valve, PLC controller and other important parts are imported. The equipment has good performance and strong anti-interference ability. The external environment has an impact on the output and ice. The quality of the product has little effect.A variety of models can meet the needs of customers at different levels.

About us

Our Services and FAQ

Our service
☺ Installing by the user:

We will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.

☺ Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready.
Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual
installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(19.00%),

Southeast Asia(16.00%),Africa(15.00%),Mid East(14.00%),South Asia(12.00%),South America(10.00%),
Eastern Asia(6.00%),Eastern Europe(4.00%),Oceania(4.00%). There are total about 101-200 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What can you buy from us?
Ice Block Machine,Ice Cube Machine,Ice Tube Machine,Ice Flake Machine,Cold Room

4. Why should you buy from us not from other suppliers?
We Guangzhou Icesource Refrigeration Equipment CO., LTD Specializes in innovating, designing, manufacturing various commercial and industrial ice machines and cold room with more than 10 years experience. Our Engineer department keep pursuing the newest technology.

5. What services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese,Spanish

6. Are you add refrigerant in the ice machine?
Yes, our equipment is filled with refrigerant, and it can be used as long as it is connected to electricity and water.

7. Do you test the ice machine in your factory?
Yes, Our equipment will be tested twice before being put into use: factory inspection and operation test after installation at
the buyer's destination to ensure that we provide the best service to customers.In addition, our company can provide a complet set of solutions for the actual needs of customers. Creating value and fulfilling customers is our principle.

8. All your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for aboard? Such as 440V 60HZ or 220V three phase that suitable for America?
Our ice machine and power, voltage can suitable for your country, please make the power requirement be clear in your order.

Guangzhou Icesource Co., Ltd. (trademark CBFI), a pioneer in the large-scale freon refrigeration and ice making equipment industry, a large ice plant and cold storage engineering solution service provider, is an innovative and entrepreneurial high-tech enterprise that integrates research, design, manufacture, sales, and after-sales service of a large-scale edible ice making equipment, large-scale industrial ice making equipment, high-end commercial ice maker, complete ice making system and small and large cold storage project. The main products are various kinds of ice making machine(direct-cooling block ice machine, block ice machine, tube ice machine, cube ice machine, flake ice machine, plate ice machine, pure ice machine and fully automated ice plant). Products are widely used in food, fishery, retail, fruits and vegetables, aquatic products, chemicals, medical, construction, minerals and other fields for cooling, storage and preservation.

Introduction to CBFI Company

Certifications

Enteprise Honor

Our partners

Packing process

Our Factory

CBFI Quality Management Department

CBFI Quality Management Department is an important control method for processing quality. It equipped with the most advanced inspection equipments The professional control devices,it can provide accurate reference data to choose the most suitable material and accessories, which also effectively control parts quality. Besides, it also provides digital information for engineers and quality controller to determine feasibility for spare parts after processing.

This is the working processing of quality control.

Chooing steady quality supplier. After purchasing raw material, duing testing if it is proved well, then we will arrange these eligible matrial that come into warehouse.

When the machine finish fixing and come into testing working conditon. Every worker will be responsible for their equipment. They will give out fact testing date and results.After proving testing date is accord with delivery standard. Then CBFI Quality Management Department will allow these equipment that go to packing department and waiting for cleaning and packing.

Before delivery, CBFI Quality Management Department should check all mark and packing conditon. If it is prove it is accord with exporting standard and customer's requirement. Then they will allow these equipment come into fininshed product area.

Of course CBFI Quality Management Department have the right to make sample testing for every production step to make sure product quality.

CBFI means Customer Benefits From Icesource. We will take care of product quality.
