60 Tons Per Day Ammonia Refrigerant Ice Tube Machine 12 Months Warranty

Guangzhou Icesource Refrigeration Equipment Co., LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 60 Tons Per Day Ammonia Refrigerant Ice Tube Machine 12 Months Warranty from wholesalers

    Buy cheap 60 Tons Per Day Ammonia Refrigerant Ice Tube Machine 12 Months Warranty from wholesalers
    • Buy cheap 60 Tons Per Day Ammonia Refrigerant Ice Tube Machine 12 Months Warranty from wholesalers

    60 Tons Per Day Ammonia Refrigerant Ice Tube Machine 12 Months Warranty

    Ask Lasest Price
    Brand Name : CBFI
    Model Number : AT60
    Certification : CE, ISO
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 100 sets per year
    Delivery Time : 45 days after the forward payment
    • Product Details
    • Company Profile

    60 Tons Per Day Ammonia Refrigerant Ice Tube Machine 12 Months Warranty

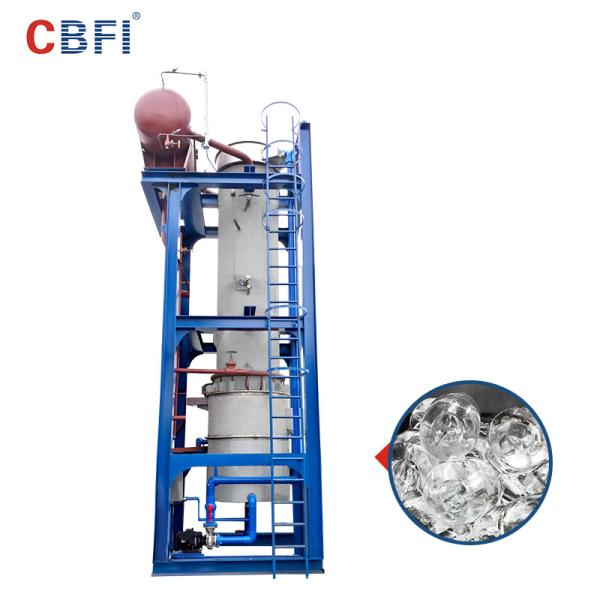

    CBFI AT60 60 Tons Per Day Ammonia Refrigerant Tube Ice Machine

    60 ton ammonia refrigerant tube ice machine is using ammonia as the refrigerant. The tube ice machine is of high capacity. At present, we provide 60 tons 24 hours and 80 tons 24 hours for customers. The CBFI AT series tube Ice machine is an ammonia type designed to meet ultra-large tube ice production capacity. The AT Series will provide you with automatic operation, energy efficiency and the best warranty in the business which make CBFI tube Ice machines the good choice for your ice making needs.


    Product Features

    Daily Production 60 ton 24 hrs
    Evaporator is made of stainless steel, and PU foam insulation is used for better efficiency.
    Automatic laser welding to make the welding work nice and no leak, ensured the low fault rate.
    All equipments are made of 3D simulation assembly,compact structure,which makes it humanized to operate and maintain.
    Special alloyed machine combined with unique heat treatment process makes the evaporator has the best thermal performance.
    Ammonia flooded operation.
    Well designed Stainless Steel cutter for good shape ice and easy to maintain.
    PLC system controls the ice making process automatically.


    CBFI-Refrigerator Ice Maker | Cbfi At60 60 Tons Per Day Tube Ice Machine

    CBFI-Refrigerator Ice Maker | Cbfi At60 60 Tons Per Day Tube Ice Machine-1

    Tube Ice Application

    Drink Cooling
    Food Cooling
    Fish Preservation
    Food Keeping
    Retail Sale



    CBFI-Professional Ice Tube Maker Machine Industrial Ice Making Machine Manufacture-3

    Product Parameter


    Tube Ice Machine (Ammonia)Parameters
    ModelCapacityCompressorTotal Power

    Evaporator size

    Host Size

    Installation Space Require
    ments

    Power
    Consumption

    Ice Size/mm

    Shipp
    ing Weight

    Ton/DayBrandKWL×W×H(mm)

    L×W×H
    (mm)

    A×B×H(m)kW·h/tonDiameterLengthTon
    AT6060MYCOM160

    2930×2250
    ×8500

    3445×1455
    ×1535

    13×7×955~60Φ2230~4525
    MYCOM160

    2980×2290
    ×8500

    3445×1455
    ×1535

    13×7×9Φ2825
    MYCOM160

    2980×2370
    ×8500

    3445×1455
    ×1535

    13×7×9Φ3525
    AT8080MYCOM220

    3110×2420
    ×8800

    3445×1455
    ×1645

    13×7.5×9.5Φ2230
    MYCOM220

    3130×2440
    ×8800

    3445×1455
    ×1645

    13×7.5×9.5Φ2830
    MYCOM220

    3210×2520
    ×8800

    3445×1455
    ×1645

    13×7.5×9.5Φ3530
    ♦Compressor Brand: MYCOM; Refrigerant: R717; Cooling Method: Evaporative condensation heat exchange;
    ♦ Power Supply: 380V/3P/50Hz;(For non-standard voltage, unit configuration needs to be calculated separately).
    ♦ Test Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C; Design Conditions T(condensing) : 40 ° C,T(evaporating):-12℃.
    ♦ (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
    ♦ (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.)



    Product Details


    CBFI-Refrigerator Ice Maker | Cbfi At60 60 Tons Per Day Tube Ice Machine-6

    Large Capacity
    CBFI is one of the top ice machine manufacturers in the world which is able to produce large
    capacity(up to 80 tons/day) tube ice machine.

    ++

    Reliable Compressor
    MYCOM has been deeply committed to the refrigeration industry for more than 80 years.

    ++
    CBFI-Professional Ice Tube Maker Machine Industrial Ice Making Machine Manufacture-7
    CBFI-Cbfi AT60 60 Tons Per Day Tube Ice Machine Plant On Icesource

    Ice Cutter
    Stainless steel ice cutter is not easy to get rusty, so it will not pollute the ice. And after several times of updating, our ice cutter has a better performance with less crashed ice.

    ++

    PLC Control System
    Siemens PLC is used in our system for auto control. All ice making process is automatic. Operator uses a touch screen to control the whole machine.

    ++
    CBFI-Refrigerator Ice Maker | Cbfi At60 60 Tons Per Day Tube Ice Machine-9
