    1 Ton Per Day Flake Ice Machine For Concrete Cooling

    Ask Lasest Price
    Brand Name : CBFI
    Model Number : BF1000-BF60000
    Certification : ISO, CE, SGS, BV
    Price : USD1 - USD999999
    Payment Terms : Western Union, L/C, T/T, MoneyGram
    Supply Ability : 60 set per month
    Delivery Time : 30 work days
    • Product Details
    • Company Profile

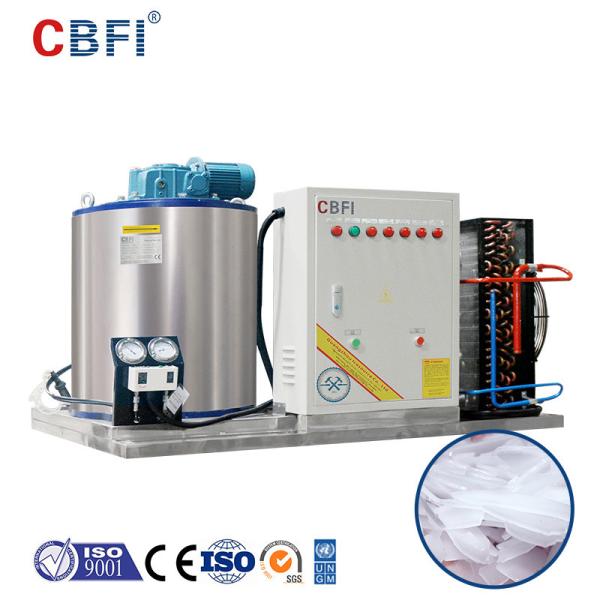

    1 Ton Per Day Flake Ice Machine For Concrete Cooling

    1 Ton Per Day Flake Ice Machine For Concrete Cooling
    1 ton 24 hrs flake ice machine BF1000 is equipped with air condenser or water condenser. Air cooled flake ice machine is welcomed in areas that lack of water. The only thing is that you need to ensure the good ventilation. This size of machine is suitable for supermarket, vege market, fish market, or many other places that small amount of ice is needed. The machine is capable of making about 42 kg every hour, which is about 93 lbs.
    Application of industrial ice flaker machine :

    1, Concrete Cooling

    2, Dye-chemistry industry,

    3, large concrete project,

    4, large crude and fresh supermarket,

    5, meat process,

    6, large fishery wholesale market,

    7, food processing company


    Main Features of Industrial Ice Flaker Machine

    Daily Capacity: 1 ton 24 hrs

    Machine power supply: 3 phase industrial power supply

    The flake ice machine has passed CE certification and has high quality assurance.

    The flake ice machine uses environmentally friendly refrigerant to protect the environment and improve efficiency.

    Design available for water lacking areas to use sea water to produce ice.

    The overall modular equipment can be designed for air-cooled mode, which is easy to transport, move and install on site.


    flake ice machine.pdf


    Product Parameter


    Flake Ice Machine Parameters
    ModelDaily output
    (T/24h)
    Cooling
    Method
    Compressor
    Power
    Fan Power for Cooling TowerCooling Pump
    Power
    Unit size (L*W*H mm)Unit N.W.
    (kg)
    BF5000.5Air4.1kw1280*800*800160
    BF10001Air7.44kw1320*900*900210
    BF20002Air10kw1750*1100*1050360
    BF30003Water8.45kw0.37kw1.5kw1500*1250*12601000
    BF50005Water13.49kw0.75kw2.2kw1900*1500*14701100
    BF60006Water19.94kw0.75kw2.2kw1900*1500*14701100
    BF80008Water24.2kw1.5kw2.2kw2400*1900*18601300
    BF1000010Water33.8kw1.5kw4kw2500*2000*18601500
    BF1500015Water44.5kw1.5kw4kw3350*2150*19603200
    BF2000020Water64kw1.5kw5.5kw3400*2220*22304200
    BF2500025Water76.5kw2.2kw5.5kw3700*2250*25104600
    BF3000030Water93.7kw2.2kw7.5kw4700*2250*25205000
    BF4000040Water118kw2.2kw7.5kw5000*2300*27007500
    ♦ Compressor Brand: / Hanbell; Refrigerant: R507/R404A;
    ♦ Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately).
    ♦ Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 38 ° C,T(evaporating):-20℃.
    ♦ (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
    ♦ (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.)

    Application of marine flake ice machine:

    1. The process of aquatic products processing: flake ice can reduce the temperature of processed mesons and aquatic products, prevent the growth of bacteria, and maintain the freshness of aquatic products.

    2. Application in the processing of meat products: incorporate flake ice machines that meet hygienic standards into the meat. The purpose of cooling and insurance has been achieved.

    3. During food processing, such as bread, use a flake ice machine to quickly cool down to prevent fermentation.

    4. During vegetable processing: During the processing of agricultural products and vegetables, the flake ice machine reduces the growth rate of bacteria. Achieve preservation state.

    5. In the process of long-distance transportation: in the process of long-distance transportation of vegetables, seafood, and fruits, in order to achieve freshness, flake ice machines must be used to cool down. in

    6. It is also widely used in laboratories, medicine, chemical industry, artificial ski resorts and other industries.

    7. Application in concrete: When the concrete is poured in a large area in the hot season, the concrete pouring temperature must be controlled effectively and reasonably. The flake ice machine + cold water mixing is the most effective way.




    Application of Industrial Ice Flaker Machine


    About us


    FAQ

    1. Who are we?
    We are based in Guangdong, China, start from 2010,sell to Domestic Market(19.00%),

    Southeast Asia(16.00%),Africa(15.00%),Mid East(14.00%),South Asia(12.00%),South America(10.00%),
    Eastern Asia(6.00%),Eastern Europe(4.00%),Oceania(4.00%). There are total about 101-200 people in our office.

    2. How can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3. What can you buy from us?
    Ice Block Machine,Ice Cube Machine,Ice Tube Machine,Ice Flake Machine,Cold Room

    4. Why should you buy from us not from other suppliers?
    We Guangzhou Icesource Refrigeration Equipment CO., LTD Specializes in innovating, designing, manufacturing various commercial and industrial ice machines and cold room with more than 10 years experience. Our Engineer department keep pursuing the newest technology.

    5. What services can we provide?
    Accepted Delivery Terms: FOB;
    Accepted Payment Currency:USD,EUR,CNY;
    Accepted Payment Type: T/T,L/C,Credit Card,Cash;
    Language Spoken:English,Chinese,Spanish
