    Commercial 5 Tons Direct Refrigeration Ice Block Machine

    Ask Lasest Price
    Brand Name : CBFI
    Model Number : ABI50
    Certification : CE / ISO/SG/UN
    Price : negotiation
    Payment Terms : T/T or western Union or moneygram
    Supply Ability : 30 sets per month
    Delivery Time : 30 working days after received your deposit
    • Product Details
    • Company Profile

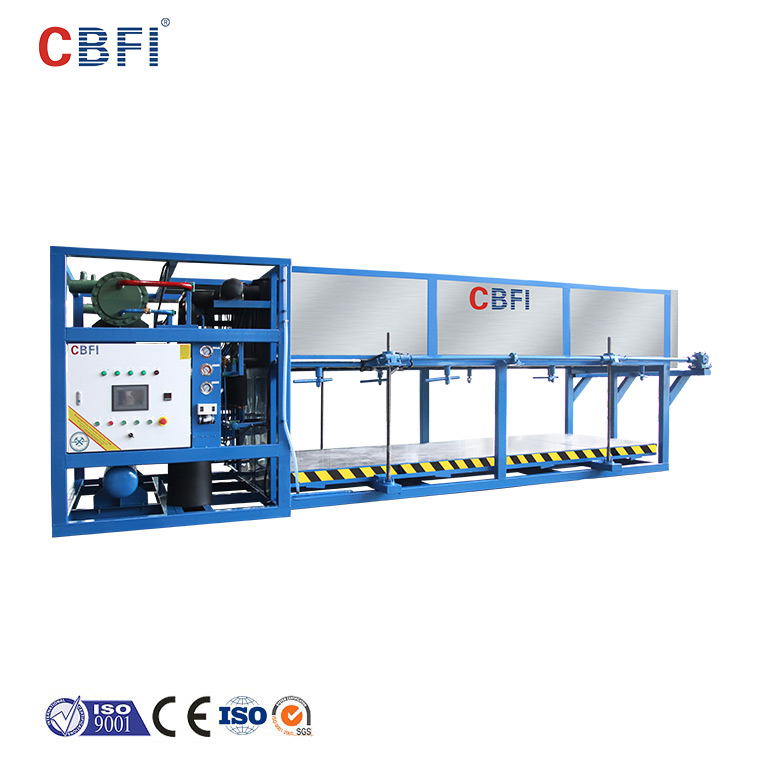

    Commercial 5 Tons Direct Refrigeration Ice Block Machine


    Commercial 5 Tons Direct Refrigeration Block Ice Machine


    Main Features


    ● Daily Capacity: 5 tons 24 hrs

    ● Machine power supply: 3 phase industrial power supply

    ● PLC controlling system, very easy to use.

    ● Automatic operation to save your labor work

    ● Compact design to save your area need.

    ● The direct cooling block ice machine is easy to operate, easy to transport, and low in cost. Because it is direct refrigeration, ice is hygienic, clean and edible. Compared to other types of products, there is no need to use brine, no ice contamination problems.

    ● The direct cooling block ice machine uses fresh water to make ice, and the water is directly frozen into ice. You don't need to add other items, only water and electricity are needed to make ice.


    automatic type block ice machine.pdf


    Commercial 5 Tons Direct Refrigeration Block Ice Machine Application


    product-CBFI-img

    Ice factory of the ports and docks, refresh for aquatic products, cooling, distance transportation,fishery, food preservation, special areas of cooling, ice sculpture.



    CBFI-Direct Cooling Block Ice Machine Ice Block Making Machine Turkey-1
    CBFI-Direct Cooling Block Ice Machine Ice Block Making Machine Turkey-2
    CBFI-Direct Cooling Block Ice Machine Ice Block Making Machine Turkey-3

    Product Parameter


    ABI50 5000kg Direct cooling ice block machine parameters
    ItemUnitParameters

    Compressor

    Spec6HE-28
    Refrigerating capacity(kw)61.8
    Power(kw)20.5
    CondenserHeat exchange capacity(kw)95.2
    Condensing TemperatureTemperature(℃)38
    Evaporating TemperatueTemperature(℃)-10
    Ambient TemperatureTemperature(℃)32
    Water Supply TemperatureTemperature(℃)20
    RefrigerantR507
    Power SupplyV/P/HZ380/3/50
    Lifting MotorPower(kw)5.5
    Cooling TowerPower(kw)0.55
    Circulating PumpPower(kw)0.75
    Cooling PumpPower(kw)2.2
    30kg Block Ice SizeL*W*H(mm)250*150*880
    40kg Block Ice SizeL*W*H(mm)340*150*880
    50kg Block Ice SizeL*W*H(mm)420*150*880
    Water Cooling Machine SizeL*W*H(mm)11000*2250*2500

    Product Details


    CBFI-Direct Cooling Block Ice Machine Ice Block Making Machine Turkey-4

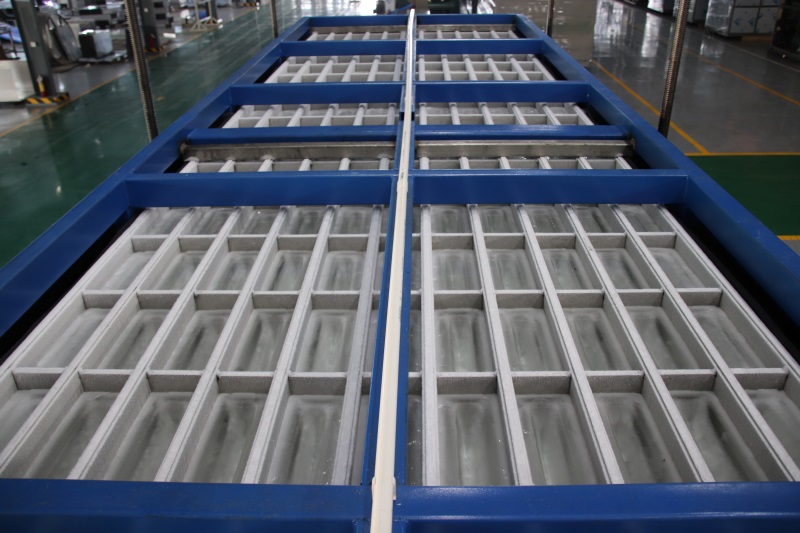

    Direct Ice Forming Method

    The direct cooling ice block machine ice mold material is aluminum plate, the main machine is made of stainless steel, which has the characteristics of anti-rust and anti-corrosion. Equipped with an electric lift to speed up the collection of ice.


    ++

    Auto Control System

    The machine is using Siemens PLC and touch screen controller for system control. After very short learning, operator may get to handle the whole machine.


    ++
    CBFI-Direct Cooling Block Ice Machine Ice Block Making Machine Turkey-5

    CBFI-Direct Cooling Block Ice Machine Ice Block Making Machine Turkey-6

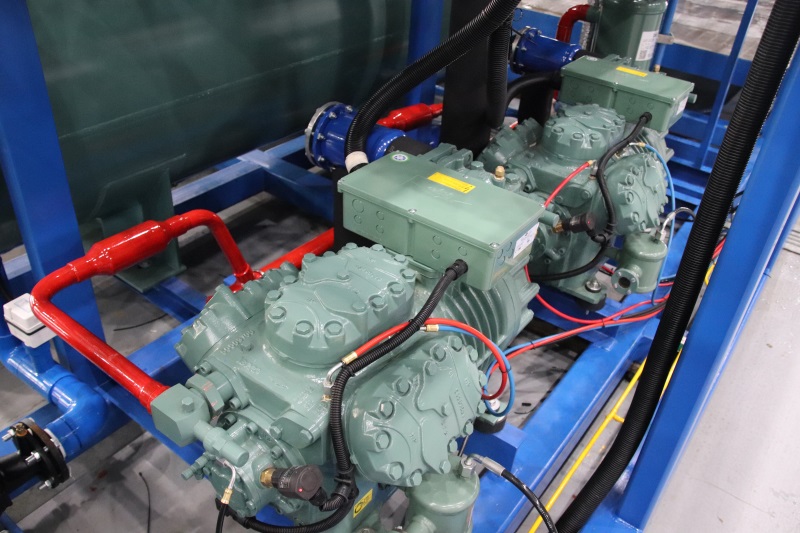

    Compressor

    Germany is a world famous brand, its after-sales service centers are all over the world. And the quality is on the top of the area. We have more than 15 years of experience using compressor in our ice mchines.
